Mckee Mobile EV Charger 3500W Pure Sine Wave Inverter 3072Wh LiFePO4 Power Station

All Category

Mckee Mobile EV Charger 3500W Pure Sine Wave Inverter 3072Wh LiFePO4 Power Station

Brand Name:	Mckee Charging Cube
Model Number:	MC-MOB-3500
MOQ:	1 Piece
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	T/T,L/C,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Rated Output Power:

3500W

Peak Output Power:

7000W

Output Waveform:

Pure Sine Wave, Ripple <200mV

Inverter Efficiency:

Up To 95%

Battery Type:

32140 Cylindrical LiFePO4

Battery Capacity:

3072Wh, 16S4P

Battery Cycle Life:

2000 Cycles, 75% Capacity Retention

BMS:

Software And Hardware Dual Protection

Charging:

Max 15A Constant Current, 4h To 90%

AC Input:

186-236V, 220V / 50-60Hz

Net Weight:

39kg

Dimensions:

466 X 230 X 550 Mm

Packaging:

Wooden Case

Supply Ability:

2000 Pieces per Month

Highlight:

Mobile EV Charger 3500W pure sine wave

LiFePO4 power station 3072Wh

Mobile EV Charger with inverter

Product Description

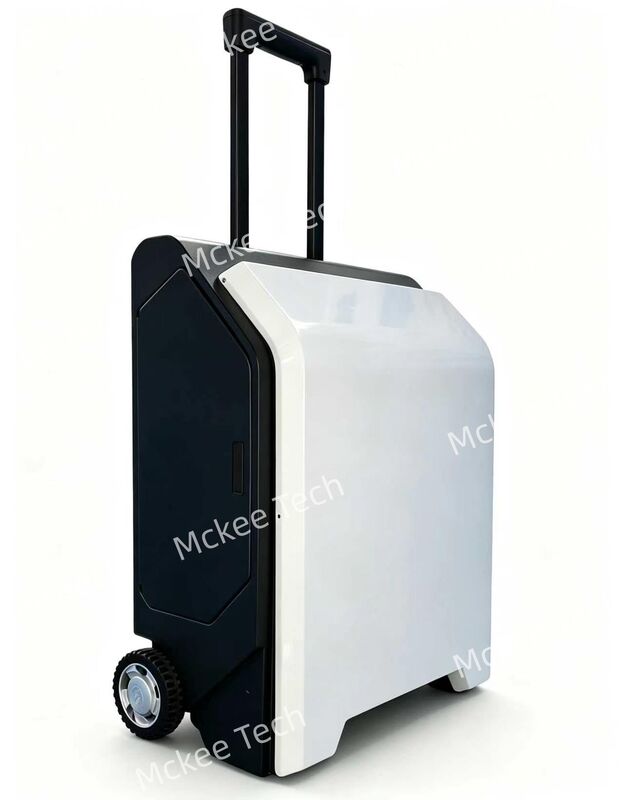

Mckee Mobile EV Charger with 3500W Pure Sine Wave Inverter

The Mckee Mobile EV Charger delivers dependable high-power output wherever it is needed. Its inverter provides a rated 3500W and a 7000W peak with a pure sine wave output and ripple below 200mV, making it suitable for a wide range of sensitive loads. Short circuit and overload protection are built in, and the unit automatically reduces power after an overload event to keep operation safe.

Powered by a 3072Wh LiFePO4 energy storage battery (32140 cylindrical cells, 16S4P), the unit combines high inverter efficiency of up to 95% with 92% charging efficiency. A maximum 15A constant current charge reaches 90% in about 4 hours and full charge within roughly one more hour.

Weighing 39kg and measuring 466 x 230 x 550mm, it ships in a sturdy wooden case for easy transport and deployment.

Key Features

High-power inverter output - rated 3500W, peak 7000W.
Pure sine wave output with ripple below 200mV for sensitive loads.
Built-in short circuit and overload protection with automatic power reduction.
3072Wh LiFePO4 battery (32140 cells, 16S4P) with BMS software and hardware dual protection.
High efficiency - inverter up to 95%, battery charging 92%.
Max 15A constant current charging - 4 hours to 90%.
Compact and portable - 39kg, 466 x 230 x 550mm, wooden case packaging.

Technical Parameters

Rated Output Power	3500W
Peak Output Power	7000W
Output Waveform	Pure sine wave, ripple <200mV
Inverter Efficiency	Up to 95%
Battery Type	32140 cylindrical LiFePO4
Battery Capacity	3072Wh, 16S4P
Battery Cycle Life	2000 cycles, 75% capacity retention
BMS	Software and hardware dual protection
Charging	Max 15A constant current
AC Input	186-236V, 220V / 50-60Hz
Net Weight	39kg
Dimensions	466 x 230 x 550 mm
Packaging	Wooden case

Applications

Mobile EV roadside charging - portable high-power backup for stranded vehicles.
Outdoor work sites - run tools and equipment with clean pure sine wave power.
Emergency and backup power - safe, protected output for critical loads.

FAQ

Q1: What is the output power of the inverter?

A1: Rated 3500W with a 7000W peak, pure sine wave output and ripple below 200mV.

Q2: What battery does it use?

A2: A 3072Wh LiFePO4 battery using 32140 cylindrical cells in a 16S4P configuration.

Q3: How efficient is the unit?

A3: Inverter efficiency is up to 95% and battery charging efficiency is 92%.

Q4: Is it protected against overload?

A4: Yes, it includes short circuit and overload protection and automatically reduces power after an overload.

Q5: How is it packaged and how much does it weigh?

A5: Net weight is 39kg, dimensions are 466 x 230 x 550mm, supplied in a wooden case.
