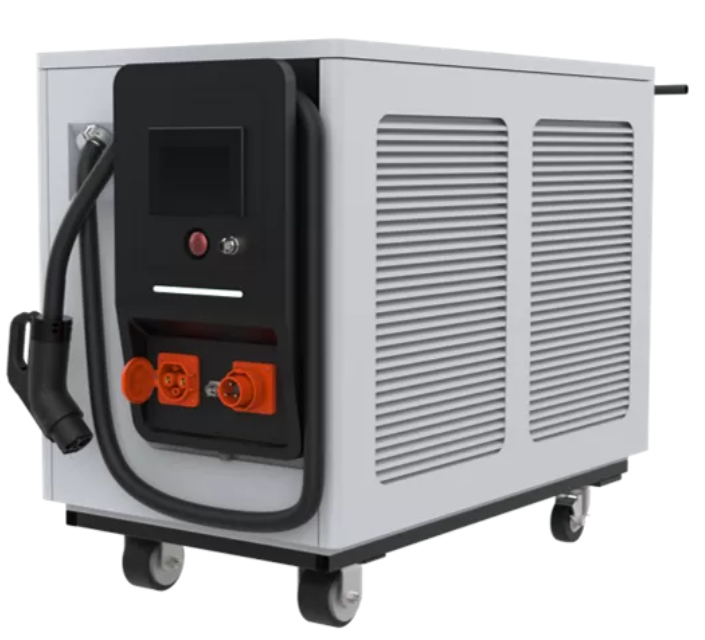

26kWh Portable Fast Charging Station

All Category

26kWh Portable Fast Charging Station

Brand Name:	Mckee Charging
Model Number:	CLF-FDC 26KWMH
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Highlight:

26kWh portable EV charger

fast charging station for EV

mobile EV charger with warranty

Product Description

26kWh Portable Fast Charging Station

Built-in 26kWh large-capacity energy storage, supports DC fast charging without fixed power grid. 30kW high power complying with GB standard delivers rapid energy replenishment and greatly improves charging efficiency.

Product Details

Place of Origin:

Luoyang, China

Certification:

Rated Power:

26kW

Capacity:

26kWH

Display Screen:

7-inch Touch Screen

Output Voltage Range:

DC200V-750V(0-100A)

Charging Gun:

GBT/CcS1/CCS2 Optional (7m Cable Length)

Product Size:

1300*710*980mm

Weight:

About 490kg

Protection Level:

IP55

Key Highlights

30kW Rated Power Mobile EV Charger

26kWH Capacity Portable Charging Station

IP55 Protection EV Charger

Technical Specifications

Parameter	Specification
Electric Current	250A / 600A
Input Voltage	327V - 456Vac
Power	Complete machine (0-2400A), Single circuit (0-25A), Super-charging (0-600A)
Output Voltage	50V - 1000V
Waterproof Level	IP54
Input Frequency	45Hz - 65Hz
Work Temperature	-30°C to 85°C (Derated output when temperature exceeds 50°C)
Power Factor	≥ 0.99
Operating Humidity	5% - 95% (No frost condensation)
Peak Efficiency	≥ 95.5%
Elevation	≤ 2000M
Output Routes	Max 12 (Compatible with 6/8/10)
Safety Functions	Short circuit protection, Leakage protection, Overcurrent protection, Emergency Stop
Material Quality	PC Flame retardant
Usage Methods	RFID card / Swipe card / GPRS / RS485 / CAN / Ethernet
Line Length	5M / 10M
Network Connection	OCPP 1.6 protocol
Main Unit Dimensions	1355 * 995 * 2000 mm (L * W * H)
Terminal Dimensions	325 * 450 * 1430 mm (L * W * H)
Packaging	Wooden Case

Key Features

Dual charging capability with both AC and DC support
IP54 rated for dust and water resistance
Wide operating temperature range from -30°C to 85°C
Multiple authentication methods including RFID and swipe cards
Advanced network connectivity with OCPP 1.6 protocol support
Comprehensive safety protection systems
High efficiency with ≥95.5% peak performance
Flexible power configurations for various applications

Flexible Shared Charging Stack

Available in 250A/600A configurations with power options ranging from 480-600-720-800-960kW to meet diverse charging requirements.
