Mobile EV Charger
>
Portable 100kWh Energy Storage System | 60kW Mobile EV Charger

Portable 100kWh Energy Storage System | 60kW Mobile EV Charger

Brand Name: Mckee Charging Cube
Model Number: CLF-DC-100kWh
MOQ: 1
Price: Negotiate
Packaging Details: Wooden case packaging
Payment Terms: D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
Luoyang, China
Certification:
CE
Interface Standard:
CCS1 / CCS2 / CHAdeMO / GBT
Energy Storage Capacity:
100 KWh
Output Voltage:
200V - 1000V
Output Power:
60 KW
Waterproof Level:
IP54
Peak Efficiency:
≥ 95.5%
Network Protocol:
OCPP 1.6J
Operating Temperature:
-10°C ~ 60°C
Highlight:

Portable 100kWh Energy Storage System

,

60kW Mobile EV Charger

,

Mobile EV Charger with warranty

Product Description
Mobile EV charger,portable energy storage,100kWh battery,60kW fast charging

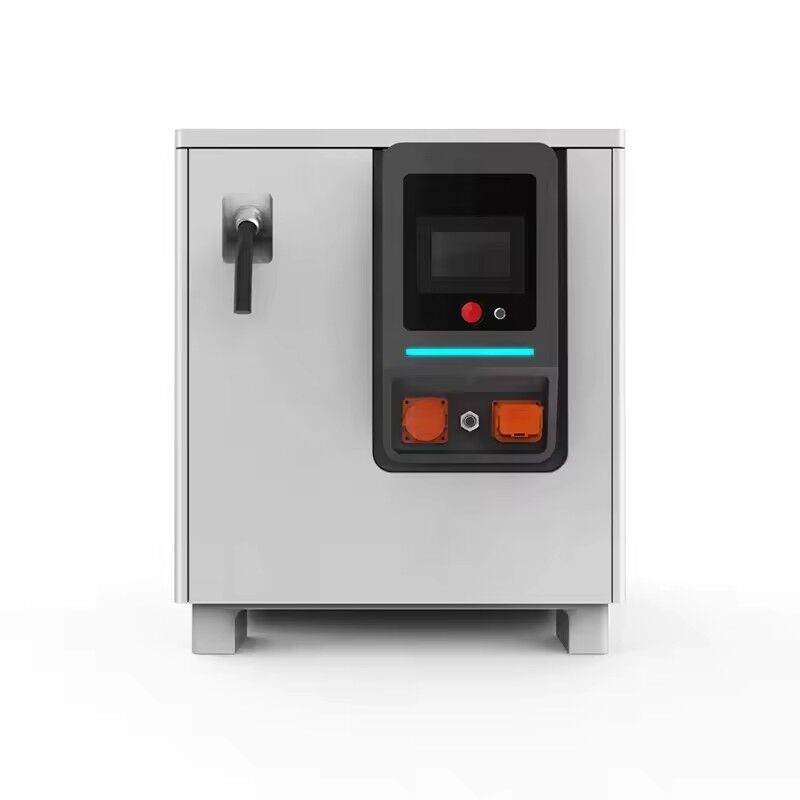

Portable 100kWh Energy Storage System | 60kW Mobile EV Charger 0



Energy Storage & Charging

Equipped with lithium iron phosphate cells with a cycle life of over 5,000 times. Standard output power is 60 kW, output voltage ranges DC 200–1000 V, and output current ranges 0–200 A. The unit supports two charging modes: 60 kW DC charging and 20 kW AC charging. A national standard 9-pin DC charging gun is supplied as standard, while European standard, American standard and other overseas connectors can be customized on demand.

Hardware Specifications

Overall dimensions: 2035×920×1491 mm. The enclosure is made of galvanized cold-rolled sheet metal with an IP54 protection rating, delivering excellent waterproof, dustproof and anti-corrosion performance.


Environment & Operation

Operating temperature: -10 ℃ ~ 60 ℃. Equipped with a 7-inch touch screen. It supports standalone and networked charging modes, complies with the OCPP protocol, and enables plug-and-play, scheduled and quantitative charging functions.

Safety & Configuration

The unit is equipped with nine layers of safety protection, including leakage, overcurrent, overvoltage, overtemperature, short circuit, overcharge, emergency stop, lightning protection and other protection functions. The charging cable is 5 meters long, and the gun connector has passed 10,000 plug-and-unplug tests with automotive-grade quality for safe and reliable operation.

Application Scenarios & Advantages

Application Scenarios

Widely applicable to gas stations, transport stations, high-end residential communities, scenic service areas, large parking lots, underground garages and other locations. It solves points such as limited space, scattered vehicle flow and charging congestion during peak hours.


Core Advantages

No fixed installation required. The remotely movable unit can charge multiple vehicles in turn, achieving higher equipment utilization than conventional fixed charging piles. It does not rely on fixed grid infrastructure for flexible deployment. In-depth OEM / ODM customization is available.


Specifications: 100kWh / 60kW All-in-One Portable Mobile EV Charger:

Item Parameter
Energy Storage Capacity 100 kWh
Rated Output Power 60 kW
Output Voltage DC 200V ~ 1000V
Output Current 0 ~ 200A
Charging Connector GB Standard (Customizable)
Overall Dimensions 2035 × 920 × 1150 mm
Total Weight ≈ 1473 kg

Portable 100kWh Energy Storage System | 60kW Mobile EV Charger 1


Portable 100kWh Energy Storage System | 60kW Mobile EV Charger 2


Portable 100kWh Energy Storage System | 60kW Mobile EV Charger 3


About us

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies,strive to provide safe and green energy services for human beings through technological innovation.

We provides you with a complete electric vehicle charging solution, from innovative energy storage technology, to public DC fast charging stations, to fast charging stations and portable charging stations for home use. We deploy infrastructure can meet every type of demand. We want to spread our footprints all over the world, continuously make new contributions to the new energy sector.

Our Main Products: 360KW Split DC EV Charging Station, 360KW Integrated DC EV Charging Station, 240/320KW Integrated DC EV Charging Station ,120/160KW Integrated DC EV Charging Station, 60/80kW DC EV Charging Station, 7KW/11KW/21KW AC EV Charging Station, 3.5KW/7KW Charging plug with American standard and European standard, Portable EV Charging and related accessories.

If you have any special needs, please contact our online service.


Portable 100kWh Energy Storage System | 60kW Mobile EV Charger 4


FAQ


Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.


Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.


Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.


Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.


Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.


NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
