Mobile EV Charger
>
26kWh Mobile Energy Storage System, Portable Emergency EV DC Charger

26kWh Mobile Energy Storage System, Portable Emergency EV DC Charger

Brand Name: Mckee Charging Cube
Model Number: CLF-DC 26kWh
MOQ: 1
Price: Negotiate
Packaging Details: Wooden case packaging
Payment Terms: D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
Luoyang, China
Certification:
CE
Interface Standard:
CCS1 / CCS2 / CHAdeMO / GBT
Electric Current:
250A / 600A
Input Voltage:
327V - 456V AC
Output Voltage:
50V - 1000V
Input Frequency:
45Hz - 65Hz
Waterproof Level:
IP54
Peak Efficiency:
≥ 95.5%
Network Protocol:
OCPP 1.6J
Highlight:

26kWh portable EV charger

,

mobile emergency energy storage

,

DC fast charger for EVs

Product Description
Serving as a backup emergency power source, this mobile charging unit delivers temporary charging solutions for electric vehicles. It supports both AC and DC dual input modes, and comes standard with a 26kWh battery capacity and 30kW rated output. Higher capacity and upgraded power ratings are available via custom customization.

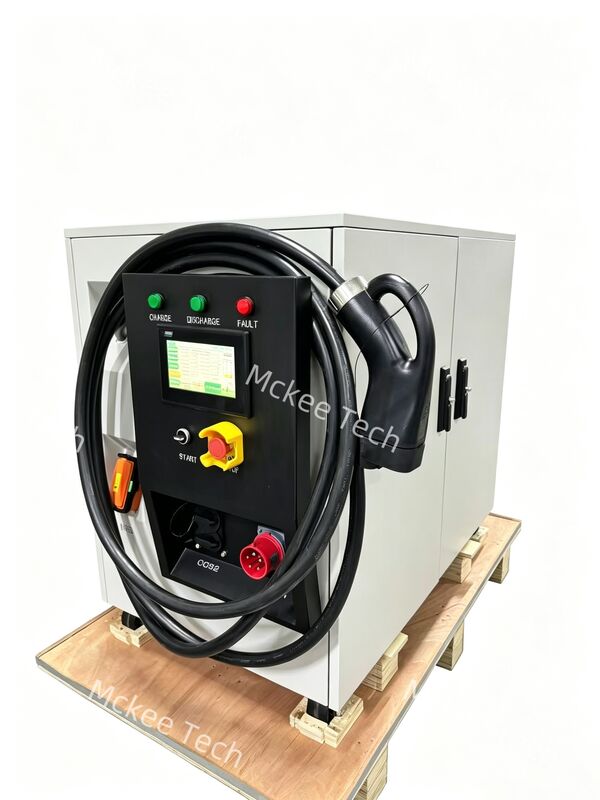

26kWh Mobile Energy Storage System, Portable Emergency EV DC Charger 0


Built with premium lithium iron phosphate (LiFePO4) cells, this equipment delivers outstanding safety standards alongside durable and stable operation. It generates clean pure sine-wave constant power output, making it ideal for three key scenarios: electric vehicle roadside breakdown rescue, on-demand mobile charging services, and steady power provision for outdoor field machinery.


Bullet-point Product Highlights

  • Broad environment tolerance: Steady running from -30℃ to 85℃ (power reduction above 50℃), adapts to 5%–95% dry humidity, works at altitudes up to 2000m.
  • Superior electric performance: PF≥0.99, peak efficiency over 95.5%; max 12 output ports, adjustable to 6/8/10 channels.
  • All-round safety design: Short-circuit, leakage and overcurrent protection + emergency stop; flame-retardant PC cabinet.
  • Versatile connection ways: RFID card swipe, GPRS, RS485, CAN, Ethernet supported; 5m/10m charging cables optional.

Parameter Specification Parameter Specification
Electric Current 250A / 600A Input Voltage 327V-456Vac
Power Range Complete: 0-2400A
Single circuit: 0-25A
Super-charging: 0-600A
Output Voltagea 50V-1000V
Protection Rating IP54 Input Frequency 45Hz-65Hz
Operating Temp. -30~85℃

(Derated above 50℃)
Power Factor ≥0.99
Operating Humidity 5%-95% (Non-condensing) Peak Efficiency ≥95.5%
Max. Altitude ≤2000m Output Routes Max 12 (Compatible 6/8/10)
Safety Features Short circuit / Leakage / Overcurrent / Emergency Stop Material PC Flame-retardant
Interfaces RFID / Swipe Card / GPRS / RS485 / CAN / Ethernet Cable Length 5m / 10m
Communication Protocol OCPP 1.6J Main Unit Dimensions 1355 × 995 × 2000 mm
Packaging Wooden Case Terminal Dimensions 325 × 450 × 1430 mm


26kWh Mobile Energy Storage System, Portable Emergency EV DC Charger 1


26kWh Mobile Energy Storage System, Portable Emergency EV DC Charger 2


About us

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies,strive to provide safe and green energy services for human beings through technological innovation.

We provides you with a complete electric vehicle charging solution, from innovative energy storage technology, to public DC fast charging stations, to fast charging stations and portable charging stations for home use. We deploy infrastructure can meet every type of demand. We want to spread our footprints all over the world, continuously make new contributions to the new energy sector.

Our Main Products: 360KW Split DC EV Charging Station, 360KW Integrated DC EV Charging Station, 240/320KW Integrated DC EV Charging Station ,120/160KW Integrated DC EV Charging Station, 60/80kW DC EV Charging Station, 7KW/11KW/21KW AC EV Charging Station, 3.5KW/7KW Charging plug with American standard and European standard, Portable EV Charging and related accessories.

If you have any special needs, please contact our online service.


26kWh Mobile Energy Storage System, Portable Emergency EV DC Charger 3






















































FAQ


Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.


Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.


Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.


Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.


Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.


NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
