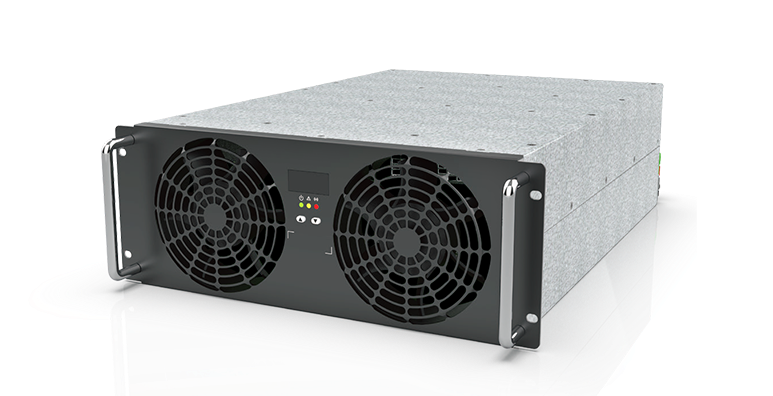

60kW Ultra-High Efficiency Isolated Charging Module for DC Fast Charging Infrastructure

Module Overview

Our 60 kW charging module is developed with world-leading power supply technologies and manufacturing techniques, featuring high efficiency, high power density, superior reliability, intelligent control and streamlined appearance.

Equipped with intelligent air-cooled heat dissipation, the module delivers high power density with compact space occupation. It supports hot swapping and battery reverse feeding protection for easy parallel operation of multiple units.

A built-in AC relay enables zero standby power consumption, lowering the overall charger cabinet design cost and cutting operational electricity expenditure.
The double-sided potting process effectively safeguards internal circuits against corrosion induced by moisture, dust and salt mist.

Key Features

Full-load efficiency ≥97%, peak efficiency ≥97.5%;
Adopts double-sided potting process to enhance module protection and extend service life;
High power density up to 60W/in³;
Equipped with LED display for convenient human-machine operation; it can display voltage, current, group number,
communication protocol, address, manual/automatic mode and fault information;
Built-in anti-reverse current protection circuit against battery backfeed, supporting hot swapping;
Supports automatic address identification and manual address configuration;
Built-in output voltage discharge circuit.

Output Parameters

Input Parameters

Communication & Alarm

Operating Environment

Physical Characteristics

About us

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies,strive to provide safe and green energy services for human beings through technological innovation.

We provides you with a complete electric vehicle charging solution, from innovative energy storage technology, to public DC fast charging stations, to fast charging stations and portable charging stations for home use. We deploy infrastructure can meet every type of demand. We want to spread our footprints all over the world, continuously make new contributions to the new energy sector.

Our Main Products: 360KW Split DC EV Charging Station, 360KW Integrated DC EV Charging Station, 240/320KW Integrated DC EV Charging Station ,120/160KW Integrated DC EV Charging Station, 60/80kW DC EV Charging Station, 7KW/11KW/21KW AC EV Charging Station, 3.5KW/7KW Charging plug with American standard and European standard, Portable EV Charging and related accessories.

If you have any special needs, please contact our online service.

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
