30kW Mobile Electric Vehicle Charger, 26kWh Portable Energy Storage Bank

All Category

30kW Mobile Electric Vehicle Charger, 26kWh Portable Energy Storage Bank

Brand Name:	Mckee Charging Cube
Model Number:	CLF-DC 26kWh
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Interface Standard:

CCS1 / CCS2 / CHAdeMO / GBT

Electric Current:

250A / 600A

Input Voltage:

327V - 456V AC

Output Voltage:

50V - 1000V

Input Frequency:

45Hz - 65Hz

Waterproof Level:

IP54

Peak Efficiency:

≥ 95.5%

Network Protocol:

OCPP 1.6J

Highlight:

30kW mobile EV charger

26kWh portable energy storage

portable EV charger with storage

Product Description

This integrated portable charging unit is specially developed for EV emergency power and fast charging, able to quickly revive vehicles with depleted batteries on the road.

Equipped with a mobile trolley, it features great portability and suits multiple scenarios including roadside rescue, parking lot emergency charging and outdoor power supply.

Thanks to built-in intelligent safety mechanisms and IP54 dust and water resistance, it works reliably outdoors. It provides stable power output to safeguard vehicle batteries, supports rapid charging, is simple to use and highly compatible, making it a top choice for mobile emergency EV charging.

Electrical Specifications

Parameter	Specification
Electric Current	250A / 600A
Power	Complete machine: 0-2400A; Single circuit: 0-25A; Super-charging: 0-600A
Input Voltage	327V - 456V AC
Output Voltage	50V - 1000V
Input Frequency	45Hz - 65Hz
Power Factor	≥ 0.99

Environmental & Protection Specifications

Parameter	Specification
Waterproof Level	IP54
Working Temperature	-30℃ ~ 85℃ (Derated output when temperature exceeds 50℃)
Operating Humidity	5% - 95% (No frost condensation)
Elevation	≤ 2000m
Protection Functions	Short circuit, leakage, overcurrent, emergency stop

Performance Specifications

Parameter	Specification
Peak Efficiency	≥ 95.5%
Max Output Routes	12 (Compatible with 6/8/10 routes)
Material Quality	PC flame-retardant material

Communication & Usage Specifications

Parameter	Specification
Usage Methods	RFID card / Swipe card / GPRS / RS485 / CAN / Ethernet
Network Protocol	OCPP 1.6J
Line Length	5M / 10M (customizable)

Physical & Packaging Specifications

Parameter	Specification
Main Unit Dimensions (L×W×H)	1355 × 995 × 2000 mm
Terminal Dimensions (L×W×H)	325 × 450 × 1430 mm
Packaging	Wooden case

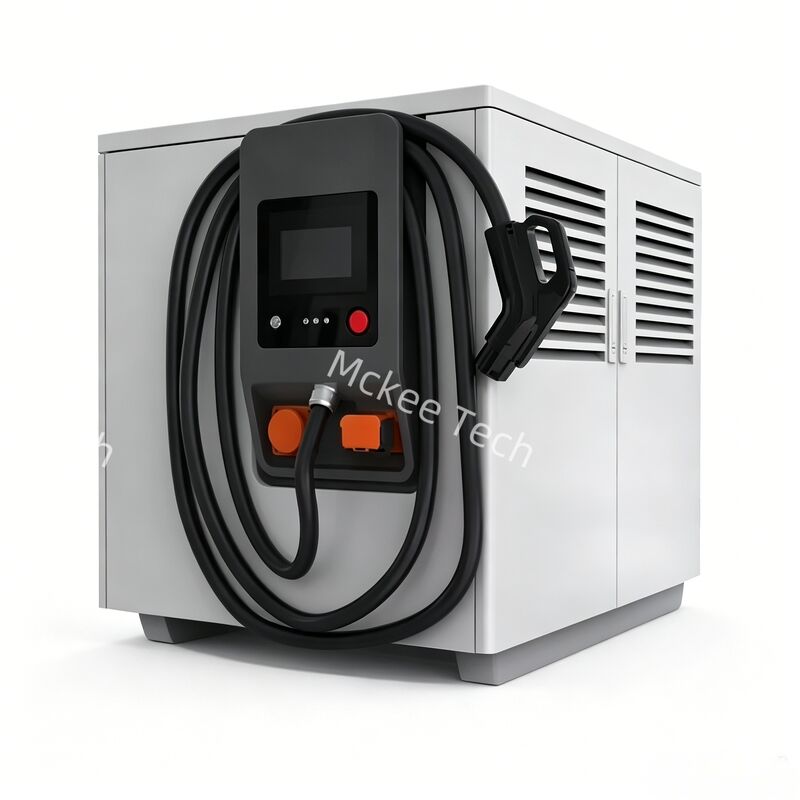

30kW Mobile Electric Vehicle Charger, 26kWh Portable Energy Storage Bank 3

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
