5kWh 220V Wheeled Mobile Power Station | EV Charging Supported

All Category

5kWh 220V Wheeled Mobile Power Station | EV Charging Supported

Brand Name:	Mckee Charging Cube
Model Number:	CLF-AC-3.5kWh
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Input Voltage Range:

186‑236V AC (Standard: 220V AC)

Output Voltage:

229V(No Load)‑216V(Full Load) AC, Standard 220V AC

Output Frequency:

50Hz

Max Charging Power:

680W

Transfer Efficiency:

Average 92%

Overall Size:

466×230×550mm

Net Weight:

39kg

Rated Output Power:

3500W

Peak Output Power:

7000W

Highlight:

5kWh wheeled mobile power station

220V portable EV charger

mobile power station with EV charging

Product Description

3.5 / 5 kWh Portable Power Station | Wheeled 220V Emergency Power for Home, Camping & Electric Vehicle.

Equipped with a retractable handle and sturdy casters, this portable energy storage system is specially developed to deliver emergency charging for new energy vehicles and supply power for various outdoor scenarios. Designed like a rolling suitcase, it can be moved around with minimal effort, which works perfectly for road trips, camping activities and roadside emergency assistance.

Measuring 466×230×550mm and weighing only 39kg, the unit features a compact build that takes up little space in car trunks and ensures easy mobility. It comes with an integrated LED lamp for convenient operation at night, and all output ports are water-resistant to cope well with outdoor conditions. Adopting pure sine wave output and supporting a wide input voltage range of 186-236V, it is fully compatible with most domestic power grids and electric vehicles. This all-round power unit is an ideal choice for emergency backup and outdoor leisure applications alike.

1. Core Battery Specifications

Item	Specification
Battery Type	32140 Cylindrical LiFePO4 Battery
Total Capacity	3072Wh (3.5kWh)
Rated Voltage	51.2V
Operating Voltage Range	48-57.6V
Cycle Life	≥2000 Cycles (75% Capacity Retention)

2. AC Input Specifications

Item	Specification
Input Voltage Range	186-236V AC (Standard 220V AC)
Input Frequency	50/60Hz

3. Inverter Output Specifications

Item	Specification
Standard Output Voltage	220V AC
Output Voltage Range	216V (Full Load) - 229V (No Load) AC
Output Frequency	50Hz
Rated Output Power	3500W
Peak Output Power	7000W
Max Output Current	15A

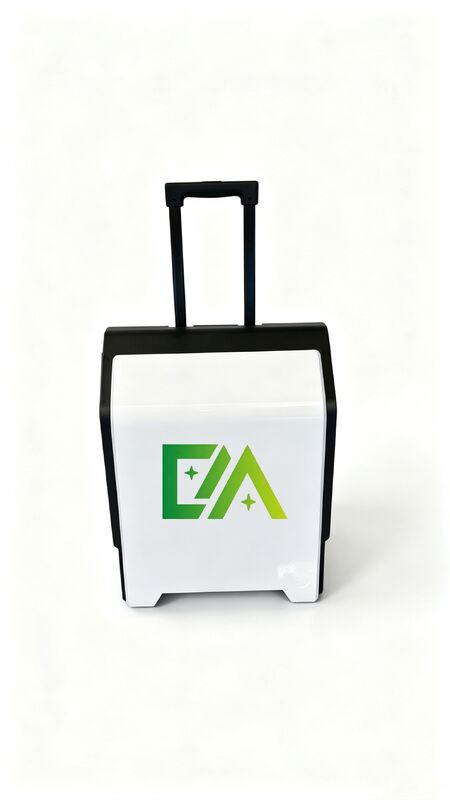

5kWh 220V Wheeled Mobile Power Station | EV Charging Supported 1

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
