Mobile Wheeled EV Charging Power Bank | 220V Outdoor Backup Power Supply

All Category

Mobile Wheeled EV Charging Power Bank | 220V Outdoor Backup Power Supply

Brand Name:	Mckee Charging Cube
Model Number:	CLF-AC-3.5kWh
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Input Voltage Range:

186‑236V AC (Standard: 220V AC)

Input Frequency:

50/60Hz

Output Voltage:

229V(No Load)‑216V(Full Load) AC, Standard 220V AC

Output Frequency:

50Hz

Max Charging Power:

680W

Transfer Efficiency:

Average 92%

Overall Size:

466×230×550mm

Net Weight:

39kg

Highlight:

portable EV charger power bank

wheeled outdoor EV power supply

220V mobile backup charger

Product Description

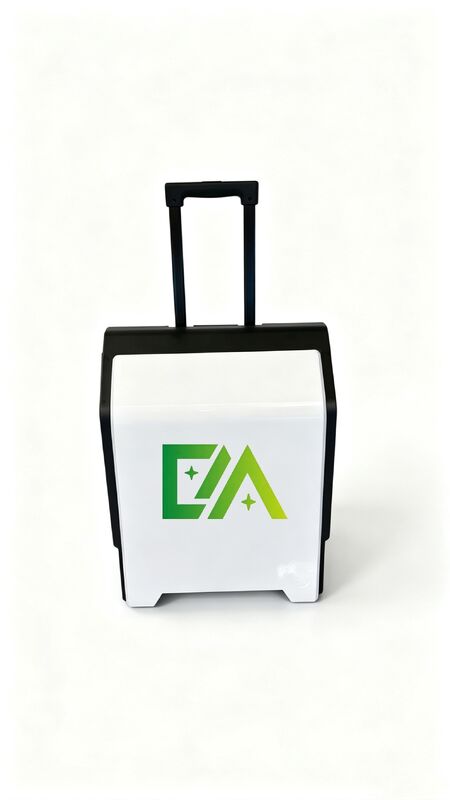

Portable Wheeled EV Charger: 220V Outdoor Energy Storage Solution

Fitted with a telescopic handle and wheels, this mobile energy storage unit is specially designed for EV emergency charging and all-round outdoor power supply. Thanks to its rolling design, it can be moved effortlessly, making it a great pick for road trips, camping and roadside rescue.

It comes with a dedicated EV charging port, boasting 3500W rated power and 7000W peak power. One hour of charging adds around 21 km of driving range, effectively resolving roadside power depletion. Equipped with two waterproof AC outlets, it can run multiple devices at the same time, making it a versatile all-in-one power solution for outdoor use.

Category	Item	Specification
Core Battery Specifications	Battery Type	32140 Cylindrical LiFePO4 Battery
	Total Capacity	3072Wh (3.5kWh)
	Rated Voltage	51.2V
	Operating Voltage Range	48-57.6V
	Cycle Life	≥2000 Cycles (75% Capacity Retention)
AC Input Specifications	Input Voltage Range	186-236V AC (Standard 220V AC)
	Input Frequency	50/60Hz
Inverter Output Specifications	Standard Output Voltage	220V AC
	Output Voltage Range	216V (Full Load) - 229V (No Load) AC
	Output Frequency	50Hz
	Rated Output Power	3500W
	Peak Output Power	7000W
	Max Output Current	15A
Battery Charging Specifications	Max Charging Power	680W
	Charging Mode	CC/CV Automatic Switch
	Charging Time	4h to 90% SOC; 1h to 100% SOC
Performance & Efficiency	Discharge Waveform	Pure Sine Wave
	Output Ripple	<200mV
	AC Input Working Efficiency	95% @220V Input; 92% @110V Input
	Inverter Transfer Efficiency	Average 95%
	Charging Transfer Efficiency	Average 92%
Safety & Protection System	Core Protection	Over-Current, Short-Circuit, Over-Load, Over-Temperature Auto-Protection
	Over-Power Protection	Triggered at 3700W
	Temperature Control	Fan Activates >45℃; Auto Cut-Off >85℃ (Heat Sink)
Additional Features	Built-in LED Light	Auto On/Off with Cover Open/Close
	LED Service Life	≥100,000 Hours
	Waterproof Rating	IP65 (Output Ports)

Mobile Wheeled EV Charging Power Bank | 220V Outdoor Backup Power Supply 1

About us

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies,strive to provide safe and green energy services for human beings through technological innovation.

If you have any special needs, please contact our online service.

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
