Wall Column Style 7kW 32A Single Port Silver EV AC Charging Pile

All Category

Wall Column Style 7kW 32A Single Port Silver EV AC Charging Pile

Brand Name:	Mckee Charging Cube
Model Number:	CLF-AC-7
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Dimensions:

Wall‑mounted: 320*210*100mm Floor‑standing: 1400*320*180mm

Rated Power:

Input Voltage:

Max Output Current:

Cable Length:

IP Rating:

Operating Temperature:

-25℃ ~ +55℃

Color:

Customizable

Highlight:

7kW wall column EV charger

32A single port AC charger

silver EV charging pile

Product Description

Our CLF-AC-7 7kW intelligent AC EV charger is high-performance commercial charging equipment, perfectly designed for commercial charging operation scenarios.

Complying with mainstream global charging standards, it supports both wall-mounted and floor-standing installation styles. It is widely applicable to residential communities, commercial parking lots, office parks, public zones and shared charging stations.

Specially optimized for unattended commercial use, it integrates various charging activation and payment functions. It helps property managers, charging station investors and enterprise operators lower labor costs and greatly improve overall operation efficiency.

Featuring 7kW rated power, 220V input voltage and 32A maximum output current, this AC charger delivers stable and efficient charging for most mainstream pure electric and plug-in hybrid vehicles.

It is fitted with a 4.3-inch high-brightness color touch screen, which intuitively displays real-time charging data including power, current, voltage, remaining charging duration and total energy consumption for easy status checking.

Equipped with a standard 5-meter flexible charging cable, it offers wider reach to suit various parking layouts and greatly enhances charging convenience.

Item	Specification
Model No.	CLF‑AC‑7
Dimensions	Wall‑mounted: 320210100mm Floor‑standing: 1400320180mm
Display Screen	4.3‑inch High‑Brightness Color Touch Screen
Rated Power	7kW
Input Voltage	220V
Max Output Current	32A
Cable Length	5m
IP Rating	IP55
Operating Temperature	-25℃ ~ +55℃
Protection Functions	Lightning protection, Over‑temperature, Over‑current, Leakage protection, Over‑voltage & Under‑voltage protection

Multi-Mode Intelligent Charging & Unattended Operation

Tailored for diverse commercial operation models, our 7kW AC charging pile supports three core activation methods: IC card swiping, QR code scanning, and plug-and-charge. Users can independently start/stop charging via authorized IC cards, mobile payment QR codes, or direct plug-and-charge functionality, enabling fully self-service, unattended charging without manual intervention.

Superior Outdoor Environmental Adaptability

Constructed with high-strength industrial-grade housing, the charger boasts an IP55 dustproof and waterproof rating, effectively blocking rain, dust, sand, and other contaminants from entering internal circuits. With a wide operating temperature range of -25℃ to +55℃, it maintains stable performance in extreme weather (severe cold, high temperatures, strong winds, heavy rain) and adapts to all complex outdoor working environments.

Flexible Installation & Versatile Application Scenarios

Two standardized installation configurations are available for flexible site layout:

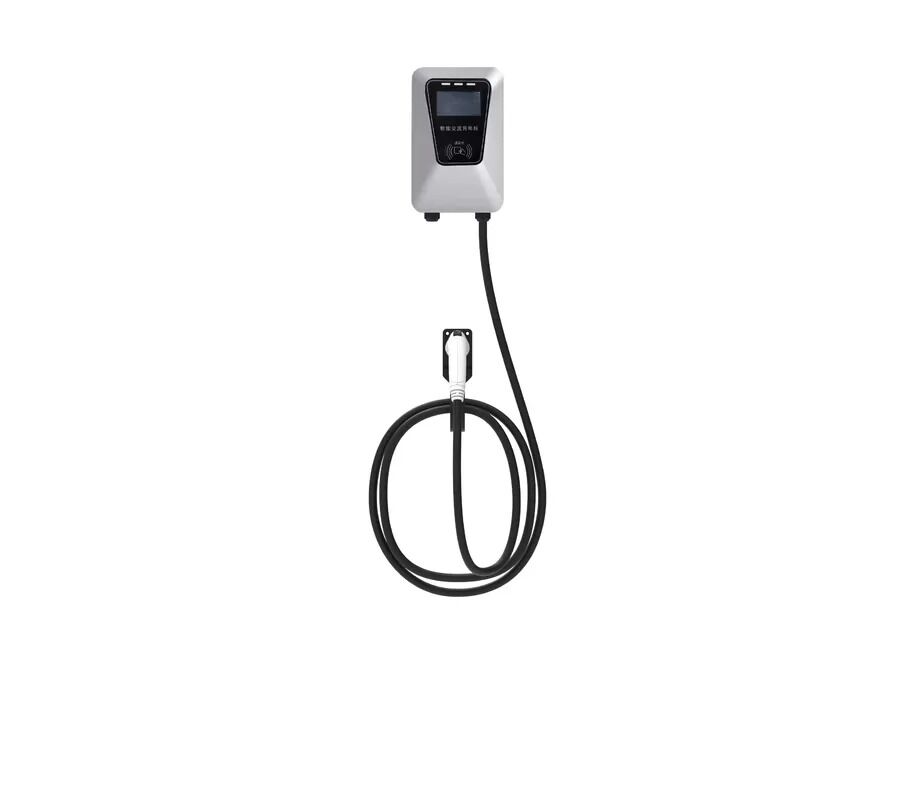

Wall-mounted (320×210×100mm): Compact and space-saving, ideal for community garages and underground parking lots.

Floor-standing (1400×320×180mm): Freestanding and easy to deploy, perfect for open-air parking and large-scale public charging stations. This 7kW AC charging pile is widely used in residential communities, commercial plazas, corporate parks, scenic spots, logistics parks, etc., serving as a cost-effective solution for global commercial EV projects and bulk wholesale cooperation.

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
