EV Charger Factory Customized Split Charging Station 960kW

All Category

EV Charger Factory Customized Split Charging Station 960kW

Brand Name:	Mckee Charging Cube
Model Number:	CLF-DC-960kW
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden case packaging
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Power Level:

480/600/800/960/1440kW

Exportable Routes:

Maximum 16 Channels

Input Voltage:

327-456Vac

Output Voltage Range:

DC50*1000V

Output Current Range:

Whole Machine 0-2400A

Efficiency:

Peak Efficiency ≥95.5%

Power Factor:

≥0.99

Protection Level:

IP55

Product Description

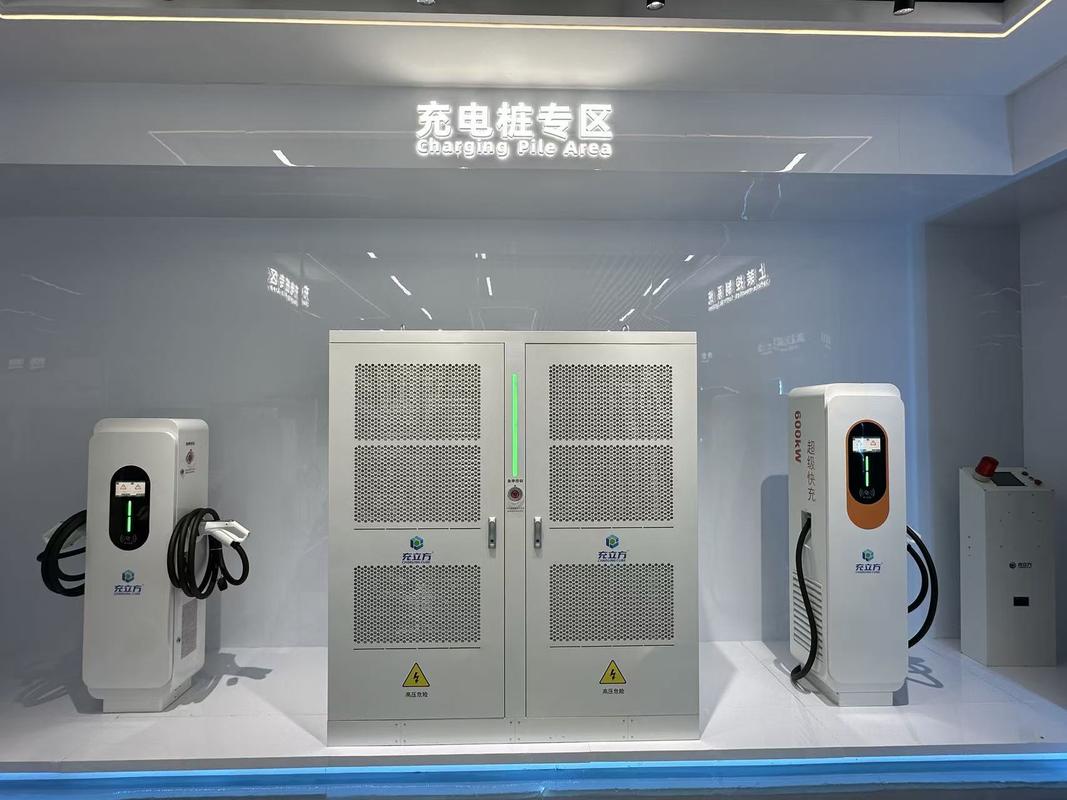

EV Charger Factory Customized Split Charging Station 960kW

The charging pile adopts PDU design, which consists of a control host and multiple charging terminals (up to 12 charging guns can be configured, and the maximum output power of a single gun is 600kW).

Advantages:

The maximum output power of a single gun is 600 kW. Charging for 3 minutes, the endurance is 200km
Use 40 kW Si℃ module. Peak efficiency ≥97%, module allocation pre-granularity is 40 kW. 11 parking spaces are shared
960kW power pool
600A liquid cooling terminal meets 2015+/ChaOji compatible with future charging needs

EV Charger Factory Customized Split Charging Station 960kW 0

Flexible Shared Charging Stack
250A/600A/480-600-720-800-960KW/Parameter
Electric Current	250A/600A	Input Voltage	327V-456Vac
Power	Complete machine(0-2400A), Single circuit(0-25A), Super - charging(0-600A)	Output Voltage	50V-1000V
Waterproof Level	IP54	Input Frequency	45Hz-65Hz
Work-Temperature	-30~85℃(Derated output when the temperature is above 50 degrees)	Power Factor	≧0.99
Operating Humidity	5%-95%(No frost condensation)	Peak Efficiency	≧95.5%
Elevation	≦2000M	Output table Routes	Max12(Compatible6/8/10)
Function	Short circuit , Leakage, Overcurrent,Emergency Stop	Material Quality	PC Flame retardant
Usage	Rfid card/Swipe card/GPRS/RS485/CAN/Ethernet	Line Length	5M/10M
Network Connection	OCPP1.6 protocol	Main Unit Dimensons	Length/Width/Height: 13559952000M M
Packaging	Wooden Case	Terminal Dimensions	Length/Width/Height: 3254501430M M
