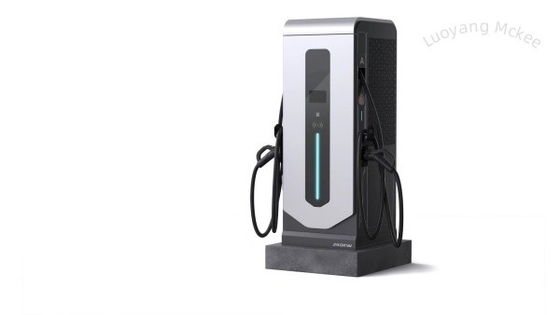

120KW Power Rating DC EV Charger Typical Output Voltage 200V–750V Max Current 250A–300A

Name: 120KW Power Rating DC EV Charger Typical Output Voltage 200V–750V Max Current 250A–300A
Brand: Luoyang Mckee Intelligent Technology Co.,LTD
SKU: CLF-DC-120KW
Availability: InStock

Brand Name:	Mckee Charging Cube
Model Number:	CLF-DC-120KW
MOQ:	1
Price:	Negotiate
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

CE/UL/CHAdeMO

Prophylactic:

Temperature Protection

Charging Time:

20-40 Mins (10-80%)

Rated Power:

DC 120kW

Input Voltage:

480 VAC

Output Voltage:

220-1000V DC Constant

Output Power:

120KW

Charging Interface:

CCS2/CCS1/CHAdeMO

Protection Level:

IP54

Warranty:

24 Months

Certifed:

CE/UL/CHAdeMO

RFID System:

OCPP1.6,WIFI,3/4G，pose

Charging Cable Length:

Packaging Details:

Wooden case packaging

Highlight:

120KW DC EV Charger

DC EV Charger 300A

Product Description

Power Rating: 120kW (Typical output voltage: 200V–750V; max current: 250A–300A).120KW Fast Charging Speed/Communication Protocols: Complies With GB/T (China), CCS (EU), UL (US)

✔ Fast Charging Speed – Suitable for most EVs, delivers ~80% charge in 20-40 mins (varies by battery size).
✔ Dual-Port Flexibility – Often supports CCS + CHAdeMO or dual CCS connectors.
✔ Cost-Effective – Lower installation and operational costs vs. ultra-rapid chargers.
✔ Wide Compatibility – Works with most EVs (except some high-voltage models).

Technical Parameters:

Parameter	Specification
Power Output	120kW (max)
Voltage Range	200-1000V DC
Current Output	Up to 300A
Connector Types	CCS1/CCS2, CHAdeMO (optional)
Efficiency	≥93%
Cooling System	Liquid-cooled cables (optional)
Grid Compatibility	3-phase AC, 380-480V
Dimensions	~800x600x1800mm (varies by model)
Weight	300-500kg

Type	Power Range	Charging Time (Example)	Use Case
120kW	DC Fast	30–40 mins (80%)	Public fast-charging
7kW–22kW	AC Slow	6–10 hours (100%)	Home/workplace
350kW+	Ultra-Fast	15–20 mins (80%)	Premium charging hubs

Best For:

Highway rest stops
Urban fast-charging hubs
Fleet operators
