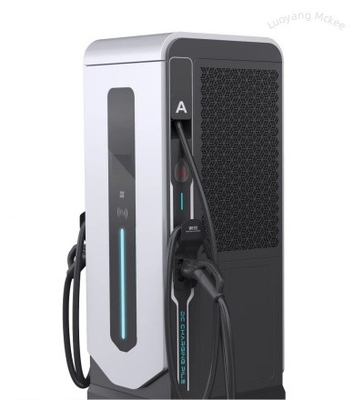

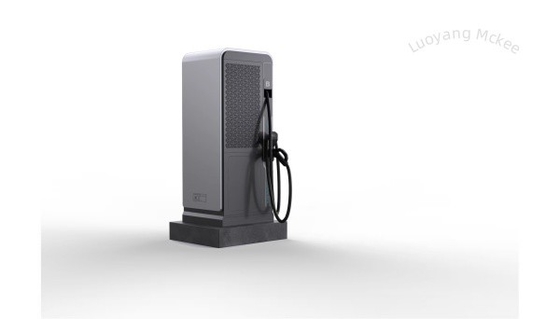

120KW DC EV Charger Fast Charging Speed Communication Protocols Complies With GB/TCCS EU UL US

Name

120KW DC EV Charger Fast Charging Speed Communication Protocols Complies With GB/TCCS EU UL US

Brand Name: Mckee Charging Cube
Model Number: CLF-DC-120KW
MOQ: 1
Price: Negotiate
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Luoyang, China
Certification:
CE/UL/CHAdeMO
Prophylactic:
Temperature Protection
Charging Time:
20-40 Mins (10-80%)
Rated Power:
DC 120kW
Input Voltage:
480 VAC
Output Voltage:
220-1000V DC Constant
Output Power:
120KW
Charging Interface:
CCS2/CCS1/CHAdeMO
Protection Level:
IP54
Warranty:
24 Months
Certifed:
CE/UL/CHAdeMO
RFID System:
OCPP1.6,WIFI,3/4G，pose
Charging Cable Length:
5m
Packaging Details:
Wooden case packaging
Highlight:

120KW DC EV Charger

,

DC EV Charger With GB/T

Product Description

120KW Fast Charging Speed/Communication Protocols: Complies With GB/T (China), CCS (EU), UL (US)


✔ Fast Charging Speed – Suitable for most EVs, delivers ~80% charge in 20-40 mins (varies by battery size).
✔ Dual-Port Flexibility – Often supports CCS + CHAdeMO or dual CCS connectors.
✔ Cost-Effective – Lower installation and operational costs vs. ultra-rapid chargers.
✔ Wide Compatibility – Works with most EVs (except some high-voltage models).


Technical Parameters:

ParameterSpecification
Power Output120kW (max)
Voltage Range200-1000V DC
Current OutputUp to 300A
Connector TypesCCS1/CCS2, CHAdeMO (optional)
Efficiency≥93%
Cooling SystemLiquid-cooled cables (optional)
Grid Compatibility3-phase AC, 380-480V

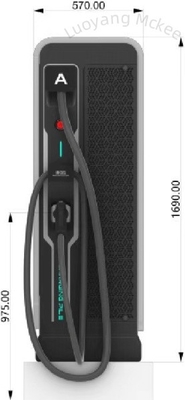

Dimensions~800x600x1800mm (varies by model)
Weight300-500kg

TypePower RangeCharging Time (Example)Use Case
120kWDC Fast30–40 mins (80%)Public fast-charging
7kW–22kWAC Slow6–10 hours (100%)Home/workplace
350kW+Ultra-Fast15–20 mins (80%)Premium charging hubs


Best For:

  • Highway rest stops

  • Urban fast-charging hubs

  • Fleet operators
