Commercial 160kW Dual-Output DC Fast Charger | IP54 Protection Against Dust & Moisture

Commercial 160kW Dual-Output DC Fast Charger | IP54 Protection Against Dust & Moisture

Brand Name: Mckee Charging Cube
Model Number: CLF-DC-160kW
MOQ: 1
Price: Negotiate
Packaging Details: Wooden case packaging
Payment Terms: D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
Luoyang, China
Certification:
CE
Cooling Method:
Air Cooling
Output Voltage Range:
DC200V-1000V
Type:
DC Fast EV Charger
Charging Port:
2 Ports
Socket Stardard:
CCS-1 / CCS-2 / CHAdeMO / GB/T
Output Power:
160kW
Max Output Current:
250A (single Gun)
Color:
Customized Color
Usage:
Charge EV Car
Ip Grade:
IP 54
Dimensions:
756mm X 706mm X 1908mm
Highlight:

160kW DC fast charger

,

dual-output EV charger

,

IP54 protected DC charger

Product Description

60–160kW Dual-Port DC Rapid Charger, Commercial EV Charging Station


This commercial DC charger comes with four power options: 60kW, 80kW, 120kW and 160kW. Equipped with high-speed DC charging capability, it effectively cuts down waiting time for vehicle owners, and helps charging stations, parking areas and fleet depots boost overall profitability.

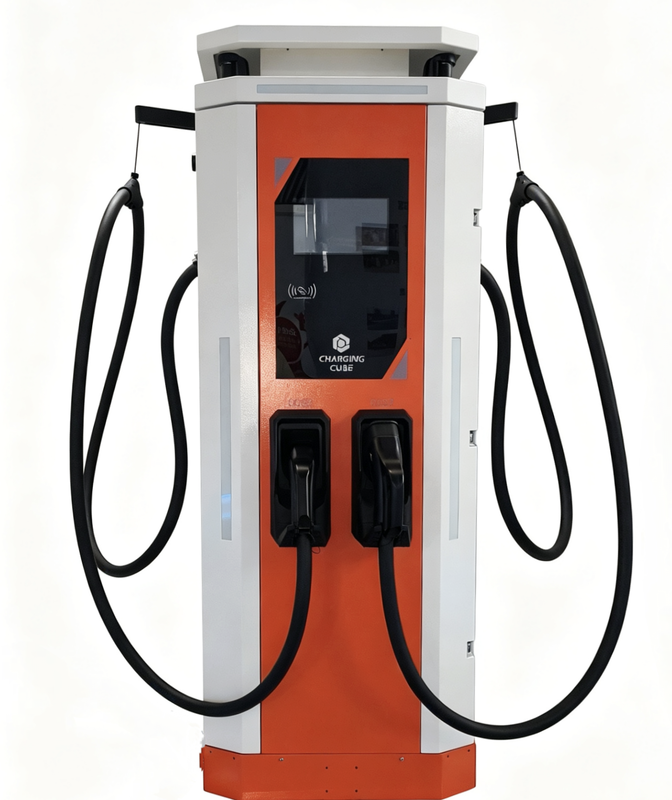

Commercial 160kW Dual-Output DC Fast Charger | IP54 Protection Against Dust & Moisture 0


Supports major international charging standards:

  • CCS1
  • CCS2
  • CHAdeMO

It delivers seamless compatibility with most mainstream electric vehicles around the globe, eliminating all compatibility-related issues.


Boasting an IP54 weatherproof grade, this device resists dust, rain and extreme temperatures. Its high-efficiency air cooling system maintains steady performance during prolonged high-load operation, even under harsh outdoor circumstances.


Parameter Item Details
Model Series CLF-DC-60 ~ CLF-DC-160
Rated Power 60kW / 80kW / 120kW / 160kW
Dimensions (Floor-standing) 756 × 706 × 1908 mm
Input Power Supply Three-phase (A/B/C+N+PE) AC 380V ±15% (Customizable)
Input Frequency 50Hz ±10% / 60Hz ±10%
Output Voltage Range 200–1000VDC (Continuously Adjustable)
Output Current Range 0–200A (60kW) / 0–267A (80kW) / 0–400A (120kW) / 0–500A (160kW)
Rated Output Current 200A (60kW) / 250A (80kW/120kW/160kW)
Number of Charging Guns Dual Guns
Supported Standards CCS2 (200A), CCS1 (200A), CHAdeMO (150A)
Protection Rating IP54
Communication 4G / Ethernet
Protocol OCPP 1.6J
Payment Methods RFID Card Swiping (ISO/IEC 14443A/B) / Credit Card POS Reader
Display 10-inch High-brightness Color Touch Screen
Cooling Method Air Cooling
Operating Temperature Standard: -20℃ ~ +50℃; Cold-resistant: -30℃ ~ +50℃
Protection Functions Short Circuit, Over-temperature, Over-current, Leakage, Over/Under Voltage, etc.
Noise Level ≤65dB

Commercial 160kW Dual-Output DC Fast Charger | IP54 Protection Against Dust & Moisture 1


Commercial 160kW Dual-Output DC Fast Charger | IP54 Protection Against Dust & Moisture 2


About us

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies,strive to provide safe and green energy services for human beings through technological innovation.

We provides you with a complete electric vehicle charging solution, from innovative energy storage technology, to public DC fast charging stations, to fast charging stations and portable charging stations for home use. We deploy infrastructure can meet every type of demand. We want to spread our footprints all over the world, continuously make new contributions to the new energy sector.

Our Main Products: 360KW Split DC EV Charging Station, 360KW Integrated DC EV Charging Station, 240/320KW Integrated DC EV Charging Station ,120/160KW Integrated DC EV Charging Station, 60/80kW DC EV Charging Station, 7KW/11KW/21KW AC EV Charging Station, 3.5KW/7KW Charging plug with American standard and European standard, Portable EV Charging and related accessories.

If you have any special needs, please contact our online service.


Commercial 160kW Dual-Output DC Fast Charger | IP54 Protection Against Dust & Moisture 3


FAQ


Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.


Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.


Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.


Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.


Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.


NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
