Home Products

Mobile EV Charger

Power Moudle 30kW/40kW For The DC EV Charger

Name: Power Moudle 30kW/40kW For The DC EV Charger
Brand: Luoyang Mckee Intelligent Technology Co.,LTD
SKU: CLF-001
Availability: InStock

Brand Name:	Mckee Charging Cube
Model Number:	CLF-001
MOQ:	1
Price:	Negotiate
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Luoyang, China

Certification:

Rated Output:

1000V/30A

Constant Power Voltage Range:

30kW（300VDC~1000VDC）

Output Voltage Range:

150VDC~1000VDC

Output Current Range:

0~100A

Startup Time:

Efficiency:

≥95%

Acoustic Noise:

＜65dB

Cooling:

Air

Dimension:

300mm (W) *84mm (H) *437.5mm (D)

Weight:

<15kg

Packaging Details:

Cardboard box packaging

Product Description

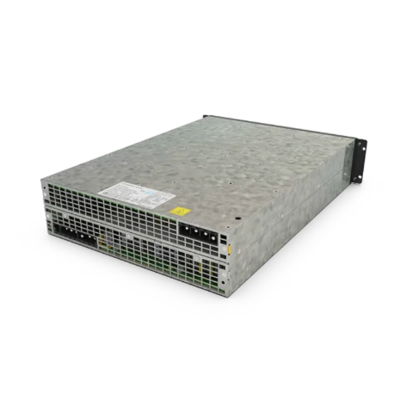

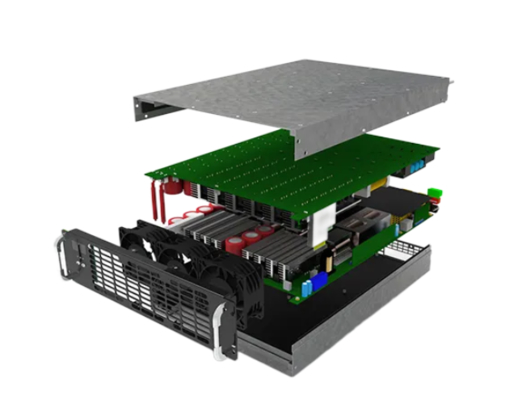

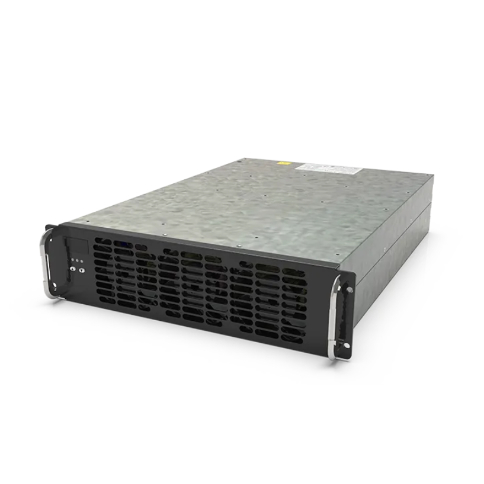

Power Moudle 30kW/40kW For The DC EV Charger

Description

It's high power 30kW charging module is dedicated to application in the fast charging station especially for energy storage charging station of EV. With the world's leading power electronic control technology and design technique, the module has good performance of high power density, high efficiency, wide voltage range, wide operating temperature range which make the charging system high reliability and easy to design.

Product Feature

AC/DC compatible input
High efficiency
Super wide constant power
Easy to operate

Technical Parameters

Power Moudle 30kW/40kW For The DC EV Charger 0

Power Moudle 30kW/40kW For The DC EV Charger 1

Power Moudle 30kW/40kW For The DC EV Charger 2

Power Moudle 30kW/40kW For The DC EV Charger 3

Power Moudle 30kW/40kW For The DC EV Charger 4
